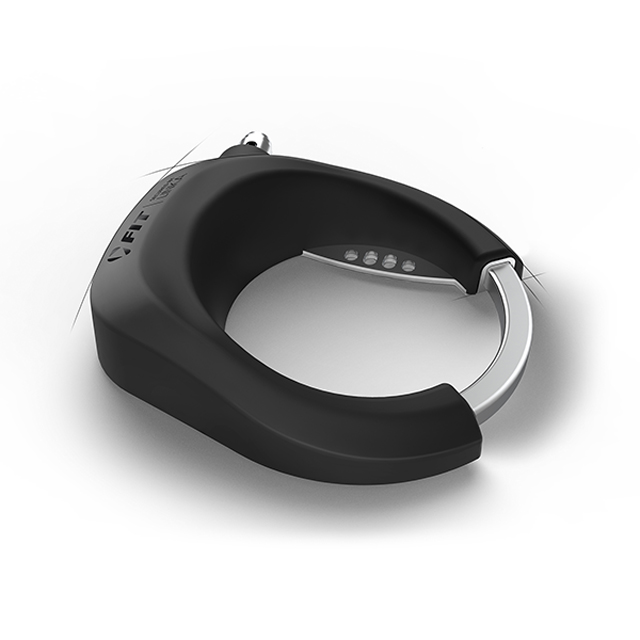

Electronic Frame lock Linka FIT
Product number:
501068
€249.00*

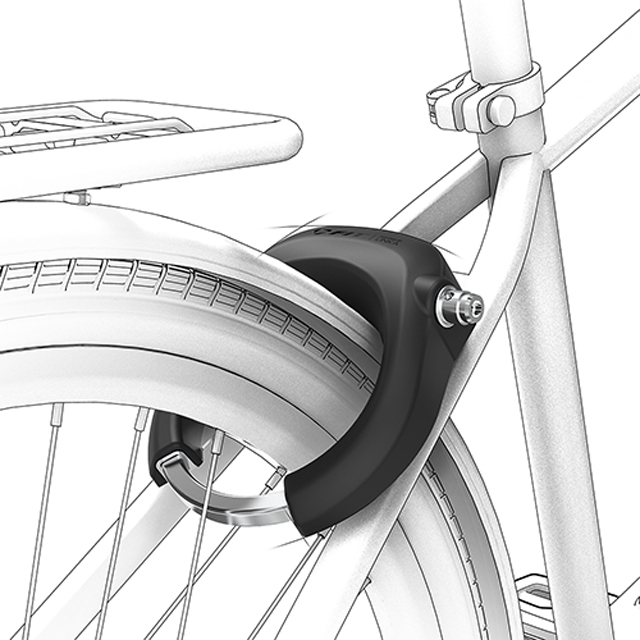

For greater security: The e-bike can be conveniently locked and unlocked electronically with the Linka FIT electronic frame lock. The lock is screwed onto the frame of the e-bike and connected to the FIT system via cable – thus guaranteeing the power supply. A smart phone can be used conveniently as a digital key. To do so, activate the FIT Digital Key or Display Lock functions in the FIT E-Bike Control app and lock and unlock the Linka FIT electronic frame lock using the app. If you prefer a physical key, use the FIT E-Bike Key hand-held transmitter.
Weatherproof and durable. Lock chain ready: chain lock can be connected.
Retrofitting not possible for all e-bikes. For further information contact the e-bike manufacturer.
Design: FIT / LINKA Logo
Connector: Higo Micro Q Male
Mounting instructions:
- Connection to FT CAN via Higo Micro Q Male (100 mm cable length from rear)

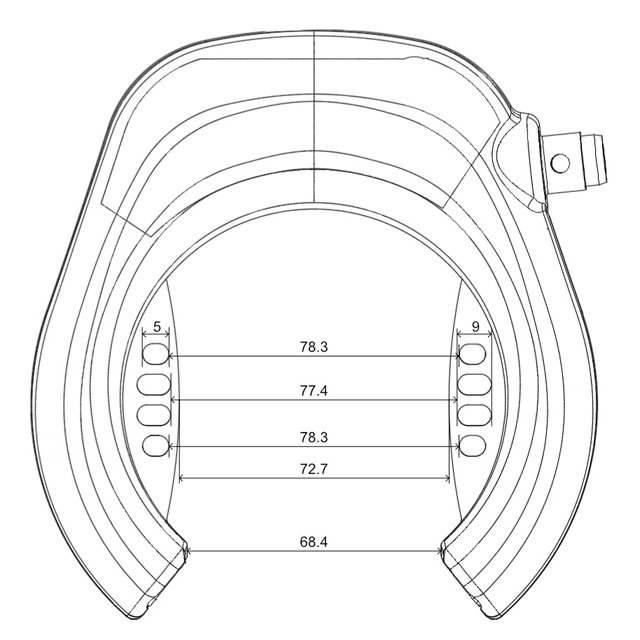

- Check whether threaded bushes with matching hole spacing are present on the frame
- Check whether the connection cable from the electronic frame lock can be routed to the engine compartment
| System: | FIT 2.0 |
|---|---|
| Cable length in mm: | 100 |
| Material colour: | black |
| Weight: | 1.43 kg |
| Length: | 159 mm |
| Width: | 152.5 mm |
| Height: | 47 mm |

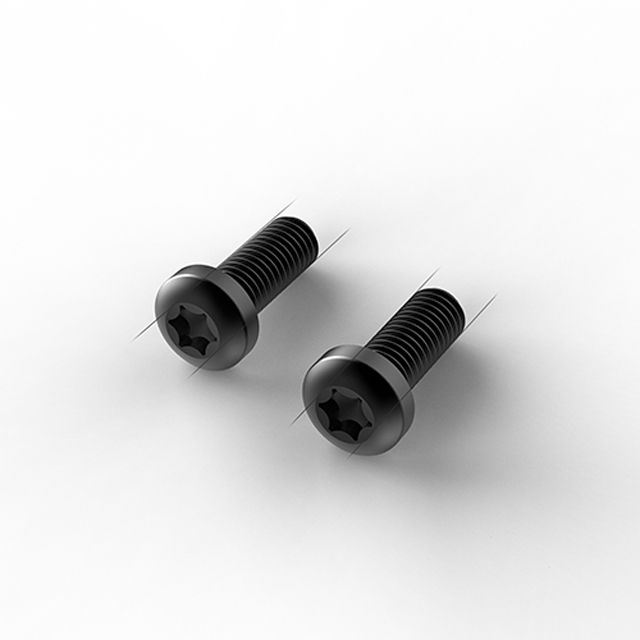

| Scope of delivery: | 1x Electronic Frame lock Linka FIT, including 2x mounting screws (M5x14 Torx) |
