Cadence sensor set Pinion gearbox for hub motor
Cadence sensor set Pinion gearbox for hub motor
Available
Available
Product number:
501350
€39.99*

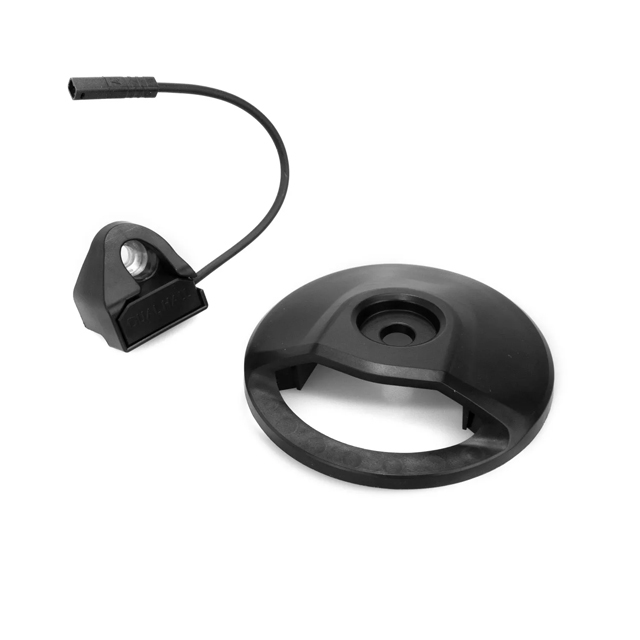

The cadence sensor measures the cadence of the Pinion transmission.

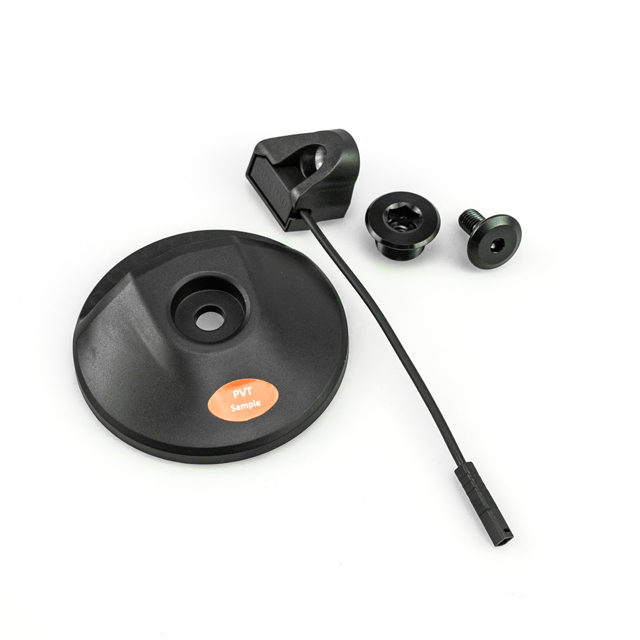

The set consists of:
- 1x Dual Hall sensors

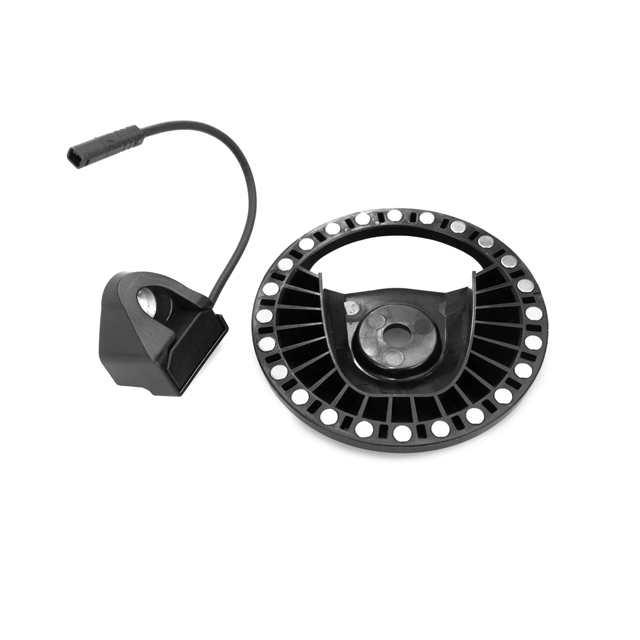

- 1x magnetic disk with 24x magnets
- 1x crank bolt
- 1x screw for magnetic disk
Dimensions:
- Magnetic disk: 84.6 x 84.6 x 20.6 mm
- Hall sensor: 30.3 x 30.3 x 24.5 mm
Material:
- Sensor housing: Plastic, black
- Magnetic disk: plastic, black, 24x magnets
- Screws: aluminum, black
Generate datasheet
| Material: | Aluminium, Plastic |
|---|---|
| Motor type: | Hub motor |
| Signal output in V: | 5 |
| System: | FIT 2.0, Bafang & TDCM, Pinion with FIT |
| Cable length in mm: | 125 |
| Material colour: | black |
| Weight: | 0.05 kg |
| Scope of delivery: | 1x cadence sensor, magnetic disk with 24x magnets, crank screw, screw for magnetic disk |
