Battery Compactcore 800 FIT 48 V
Battery Compactcore 800 FIT 48 V
This item is currently unavailable
This item is currently unavailable
Product number:
501394
€999.00*
Expected to be available from autumn 2024.

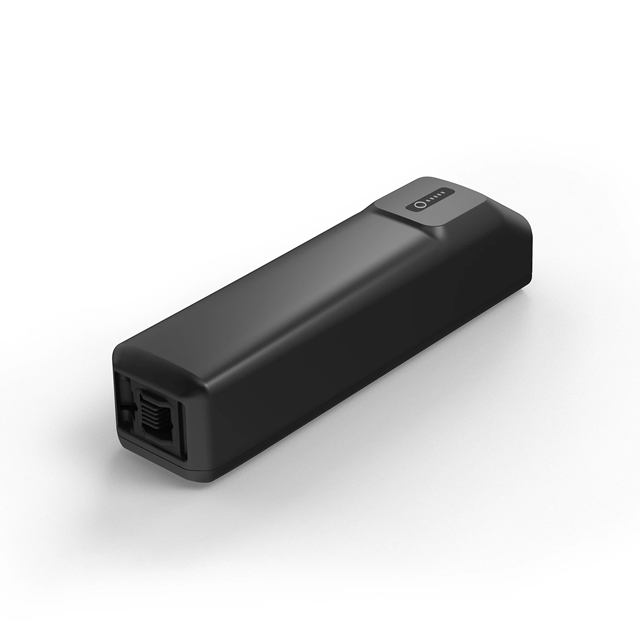

The battery Compactcore is ideal for mounting behind the seat tube on compact e-bikes. With its 800Wh, the compact seat tube battery has more capacity than comparable batteries of its class. The battery has been optimized for use in compact bicycles with the Pinion MGU, but is also suitable for integrating other motors into the FIT system. The battery is perfectly matched to the FIT system and works safely and reliably.
Please note: Lock can be ordered via ABUS: BLO FIT IT1 XPLUS Item no. ABUS 68159
Generate datasheet
Charging time in h: | 4.4 (4.8 A), 6.4 (3 A) |
---|---|
Rated capacity in Ah: | 16.71 |
Rated energy in Wh: | 779.8 |
System: | FIT 2.0, Pinion with FIT |
Nominal power in Wh: | 779.8 |
System voltage in volts: | 48 |
Nominal capacity in Ah: | 16.71 |
Material colour: | black |
Dangerous goods: | Yes |
Weight: | 3.85 kg |
Length: | 424 mm |
Width: | 90 mm |
Height: | 89 mm |
Scope of delivery: | 1x Battery Compactcore 800 FIT 48 V |
- Please read all of the safety instructions and regulations. Non-compliance with the safety instructions and regulations may lead to electric shock, fire and/or severe injuries.
- Protect the battery against temperatures over 50 ° C (e.g. also from permanent sunlight), fire and immersion in water. Do not store or operate the battery near hot or flammable objects. It could explode.
- According to European Directive 2012/19/EU, electronic devices that can no longer be used must be collected and, according to European Directive 2006/66/EC, defective or spent rechargeable batteries/batteries must be collected separately and recycled in an environmentally sound way. Please hand in batteries that can no longer be used to an authorized bicycle dealer.
- Batteries, accessories and packaging should be recycled in an environmentally sound way. Do not dispose of batteries in household waste. Before disposing of the batteries, mask the contact surfaces of the terminals with adhesive tape.
- Do not throw batteries into a fire. They can explode and cause injury.
- Batteries may not be opened. Read the instructions for protection class II equipment.
