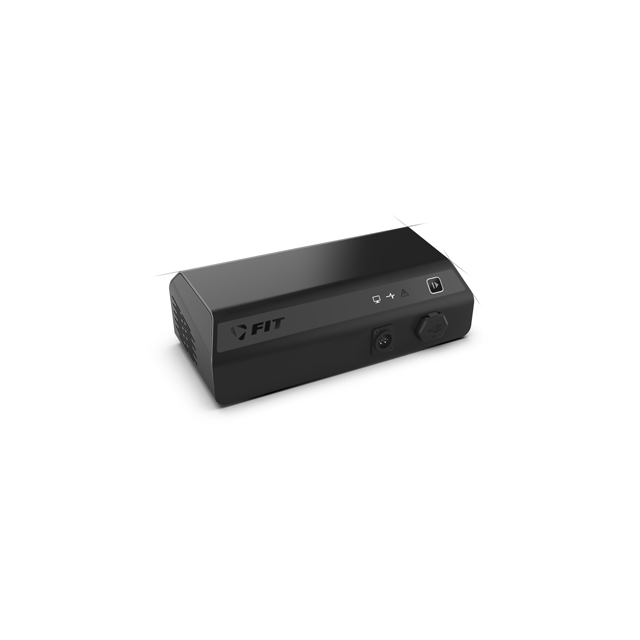

FIT battery tester
FIT battery tester
Available
Available
Product number:
500934
€1,590.00*
All batteries lose part of their capacity over time, thus reducing thee-bike’s range. You can check the capacity of your e-bikewith our FIT battery and capacity tester. The test result is read out via the FIT Maintenance Tool.
- Max. 10 A discharge current
- Max. 300 W discharge power
- For 36 V - 48 V batteries
- Software updates for FIT 2.0 batteries and charger
A discharge cable (connection between the FIT battery tester and the battery) is not included in the scope of delivery. This has to be ordered separately. Please refer to the compatibility table to see which discharge cable is compatible with which battery.
Compatibility table
| Battery | Discharge cable |
| Battery FIB 810 FIT 48 V 16.75 Ah | 501134 Cable battery tester FIB-810 AT4.1 |
| Battery Supercore 750 Brose 36 V 20 Ah | 501009 Cable battery tester Rosenberger AT3.1 |
| Battery Supercore 555 Brose 36 V 15 Ah | 501009 Cable battery tester Rosenberger AT3.1 |
| Battery Supercore IPU 750 Rotwild 37 V 20 Ah | 501009 Cable battery tester Rosenberger AT3.1 |
| Battery Sonic V10 750 Shimano 36 V 20 Ah | 501106 Cable battery tester Non FIT 2.0 AT2.1 |
| Battery Twin Core 375 Shimano E8000 37 V 10 Ah | 501009 Cable battery tester Rosenberger AT3.1 |
| Battery Brose 650 halb integral Evo 36 V 17.5 Ah | 501009 Cable battery tester Rosenberger AT3.1 |
| Battery SIB 2 630 FIT 36 V 16.75 Ah | 501403 Cable battery tester SIB 2.0 AT5.1 / NextGen AT6.1 |
| Battery SIB 2 750 FIT 36 V 20.1 Ah | 501403 Cable battery tester SIB 2.0 AT5.1 / NextGen AT6.1 |
| Battery SIB 1 432 FIT 36 V 12Ah | 501664 Cable battery tester SIB 1.0 AT7.1 |
| Battery STB 2 630 16.75 Ah | 501404 Cable battery tester STB AT6.1 / NextGen AT6.1 |
| Battery SIB 2 750 20.1 Ah | 501404 Cable battery tester STB AT6.1 / NextGen AT6.1 |
| Battery STB Next Generation 12 Ah | 501404 Cable battery tester STB AT6.1 / NextGen AT6.1 |
| Battery STB Next Generation 15 Ah | 501404 Cable battery tester STB AT6.1 / NextGen AT6.1 |
| Battery STB Next Generation 18 Ah | 501404 Cable battery tester STB AT6.1 / NextGen AT6.1 |
Generate datasheet
| System: | FIT 2.0, FIT 1.0 |
|---|---|
| Weight: | 2 kg |
| Scope of delivery: | 1x FIT battery tester |
